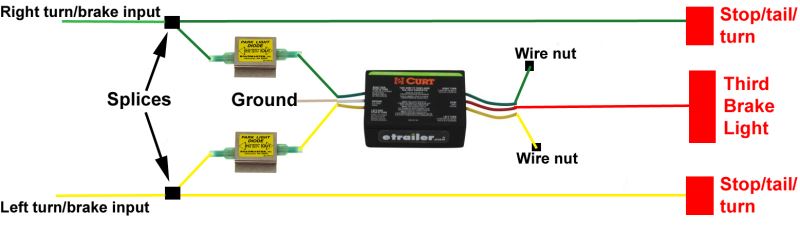

Third brake light wiring diagram 1) the 55 third brake ight is internally grounded to the metal bezel. Be sure that the mounting with bare steel to create a ground. 2) the black wire on the third brake light to the tail light of ywr car. Not the stop light / turn circuit' this connection may generally be made in the trunk.

Posted by mark emerson on may 07, 2013. Mark emerson may 08, 2013. I found that there are 2 green and black wires for the brake lights and the third brake light. One of them go to the lamp failure sensor , which was my problem, ( it was corroded inside the box itself,) the other goes from the fwd fuse box directly. Discussion starter · #5 · jun 21, 2015. ^^^ this, the brake light should be 3 wires. 1 will be running light, 1 will be ground 1 will be brake light, meter to verify. The only issue with that is the brake light is combined with the turn signal. So if i tap into that wire, the 3rd brake light will flash with the turn signal.
